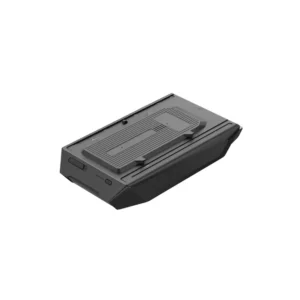

ZYC – SIMPO HV BMS-Unit

Description

Wireless, screwless, carefree - this is how the installation of the new SIMPO HV storage system from ZYC works. The proven stacking concept enables up to 28.8 kWh of usable capacity per unit. And that's not all - up to 8 towers with a total of 230.4 kWh can be connected in parallel. The field of application therefore ranges from residential to small commercial systems.

Product Features:

• Working voltage: 100 - 700 V DC

• Charging current: 30 A

• Interfaces: CAN 2.0A, Modbus RS485

• System configuration: 2 - 9 storage modules

• Cascadable: up to 8 towers in parallel

• Protection class: IP65

• Cooling: passive

• Dimensions (BMS + base): 290 x 610 x 240 mm (H x W x D)

• Weight (BMS + base): 20.0 kg

• Warranty. 10 years
