Description

Description of the situations As modules are connected in a series and in a series connection the current in all modules is only as high as that of the worst module, the yield of the entire solar system drops sharply in the event of shading, different orientations and different module inclinations. Due to the series connection, the modules marked in red above therefore all generate significantly less power.

The solution is the Power Optimizer M500 On the affected modules, the BRC optimiser increases the current to the level of the unaffected modules by reducing the voltage in the same ratio. The remaining modules marked in green above are no longer slowed down and the energy of the affected modules is utilised. Hot spot formation is avoided and the maximum yield is achieved. This means that the entire roof area can be optimally utilised.

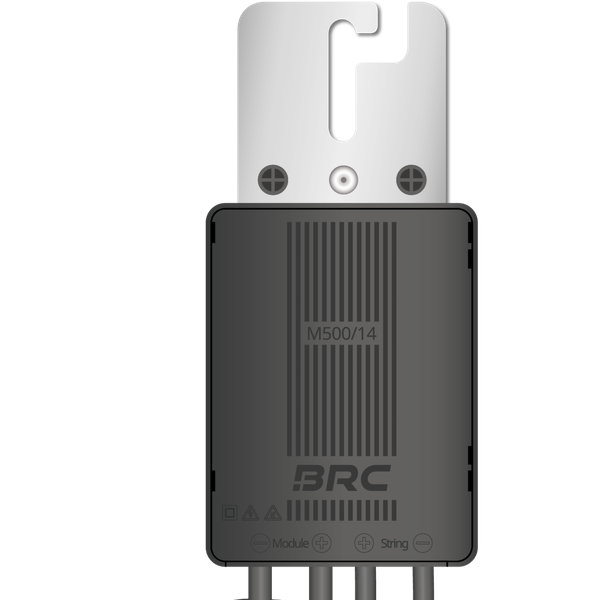

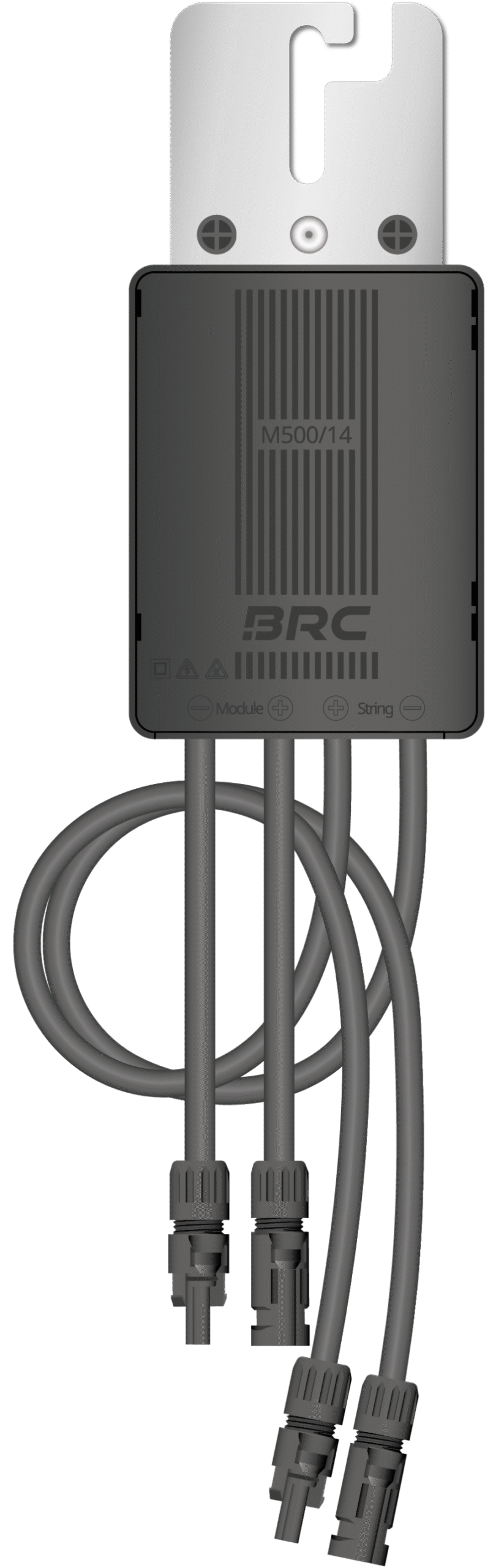

Overview of the Power Optimizer M500

- Maximum yield thanks to the patented switch-off function of the BRC optimiser when there is no need for optimisation during the course of the day

- Not required on all modules, but only on affected modules

- Inverter independence from all common brands with MPP tracking (see compatible inverter page on our homepage)

- Maximum efficiency thanks to Ultra Fast MPPT (20 times faster switching)

- Can also be used at 85° ambient temperature without loss of power

- Simple installation o Plug & Play (without software, apps, etc.)

- Reliable end-of-line production in Europe o No BRC optimiser goes on sale without a function test

- High-quality components o Original MC4 plug to prevent the risk of arcing o 6mm² cable for greater heat and EMC resistance o Water-repellent full encapsulation to protect against moisture penetration

- Professional customer service (by phone, e-mail and support form on our homepage)

- No disruptive radio connection
